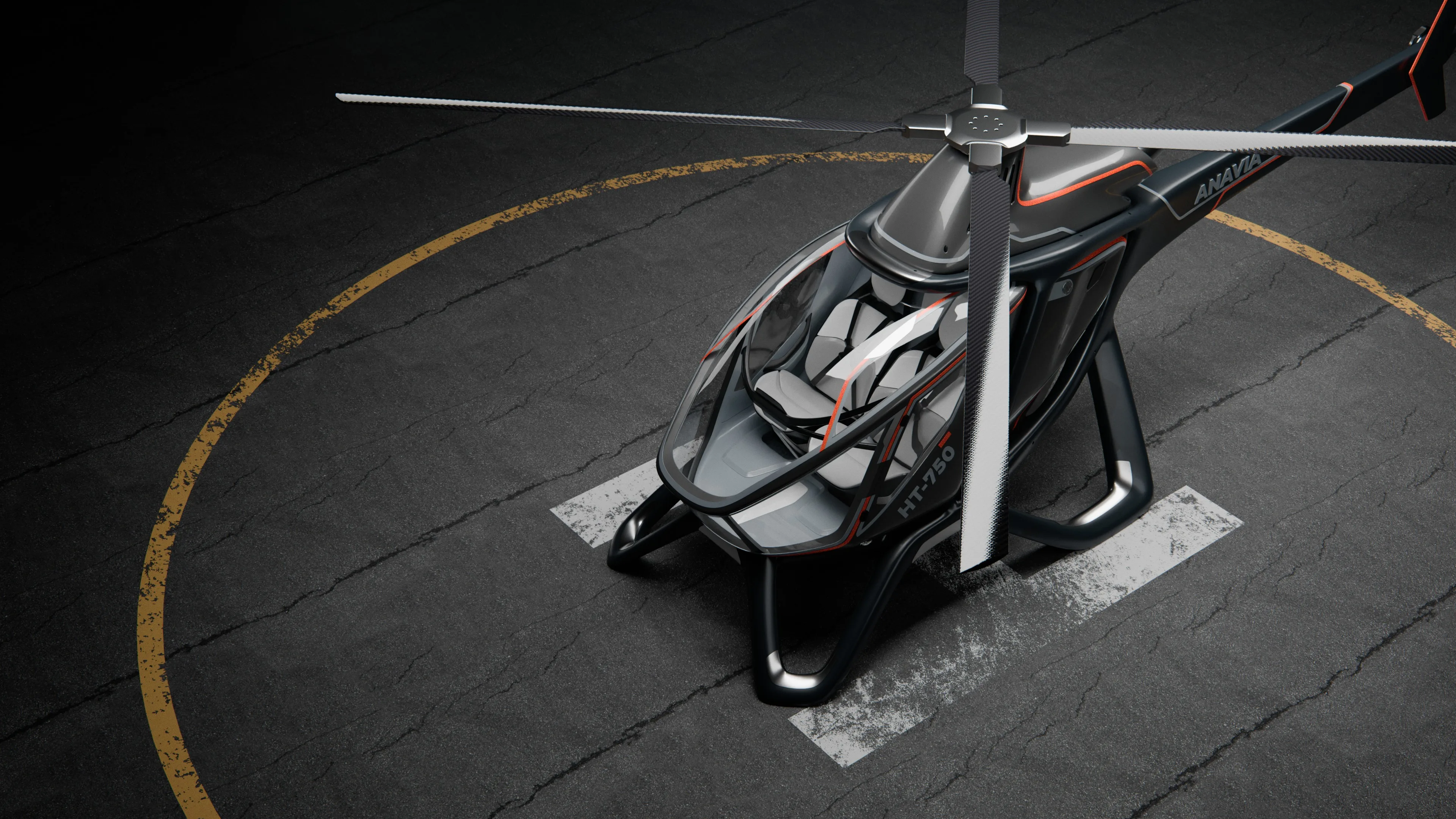

ANAVIA HT-750 heavy-lift unmanned helicopter
Heavy-Lift VTOL

HT-750

The Heavy-Lift Unmanned VTOL

The ANAVIA HT-750 redefines unmanned aerial operations with unmatched endurance, heavy payload capacity, and long-range capabilities. Designed for missions traditionally flown by manned helicopters, this Swiss-engineered VTOL system delivers superior ISR, cargo transport, and multi-mission adaptability.

Get in Touch View HT-100
7.5 m 24.1 ft Rotor diameter
10.0 m 32.8 ft Length
HT-750 scale comparison with human
2.58 m 8.46 ft Width
3.35 m 11.00 ft Height

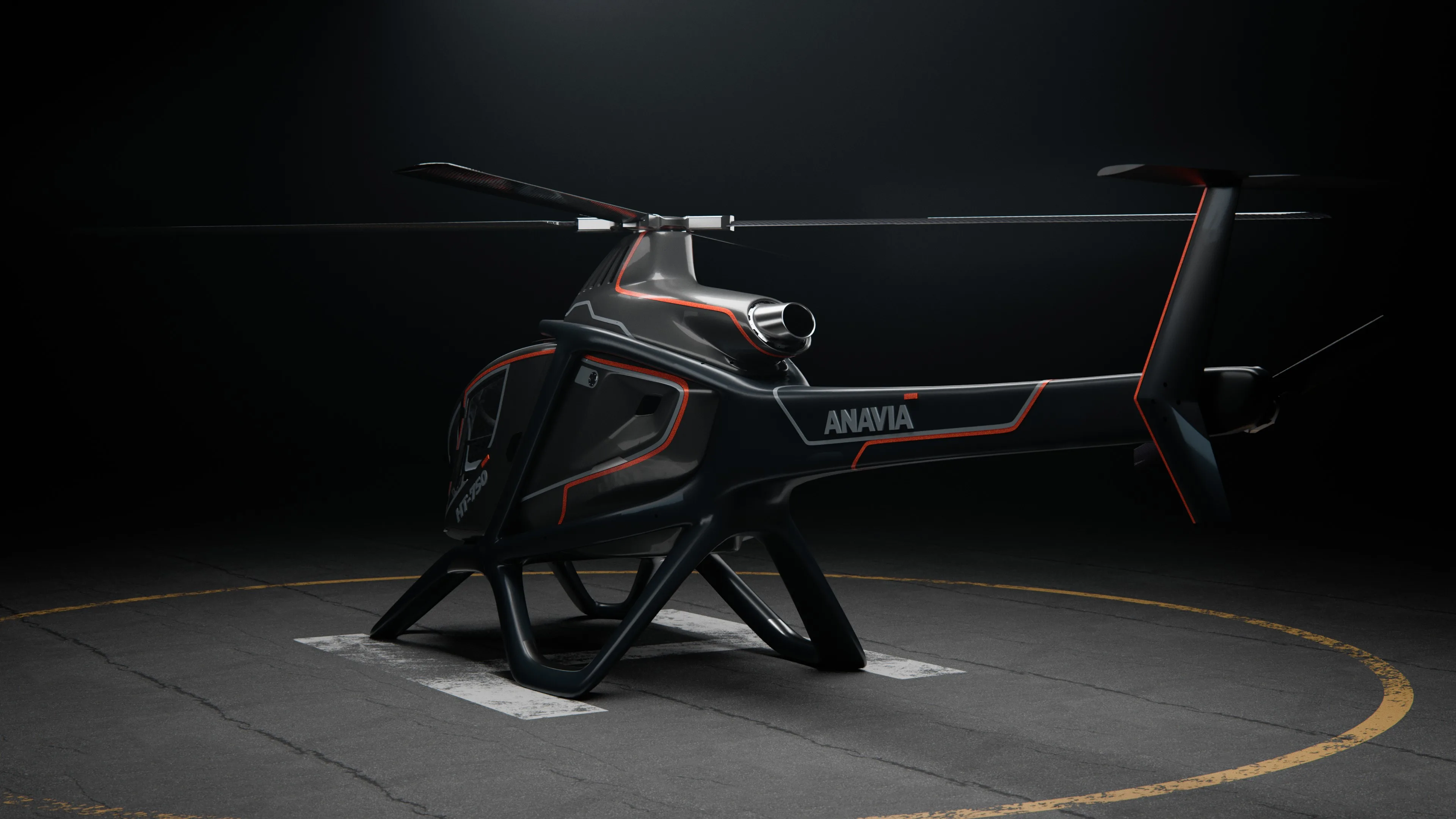

ANAVIA HT-750 heavy-lift operations
Heavy-Lift Capability

Unrivalled
Heavy-Lift.

Carries payloads up to 750 kg, setting a new benchmark in unmanned aviation. Long-range autonomous operations ideal for ISR, logistics, and tactical deployments. Optimised for extreme conditions, ensuring mission success in demanding environments.

750 kg Payload capacity
2,500 km Max mission range
222 km/h Max airspeed
15 hrs Endurance
Mission Flexibility

Next-Generation
ISR & Multi-Role.

01

Advanced Sensor Integration

EO/IR, SAR, SIGINT, LiDAR, and hyperspectral imaging for comprehensive situational awareness.

02

Autonomous Multi-Role Operations

Defence, border control, disaster response, and humanitarian missions — all from a single platform.

03

Swiss Engineering

Designed and manufactured in Switzerland with an uncompromising focus on reliability, precision, and efficiency.

04

Built for Global Deployments

Robust airframe and rotor system ensuring safety and stability in the toughest conditions worldwide.

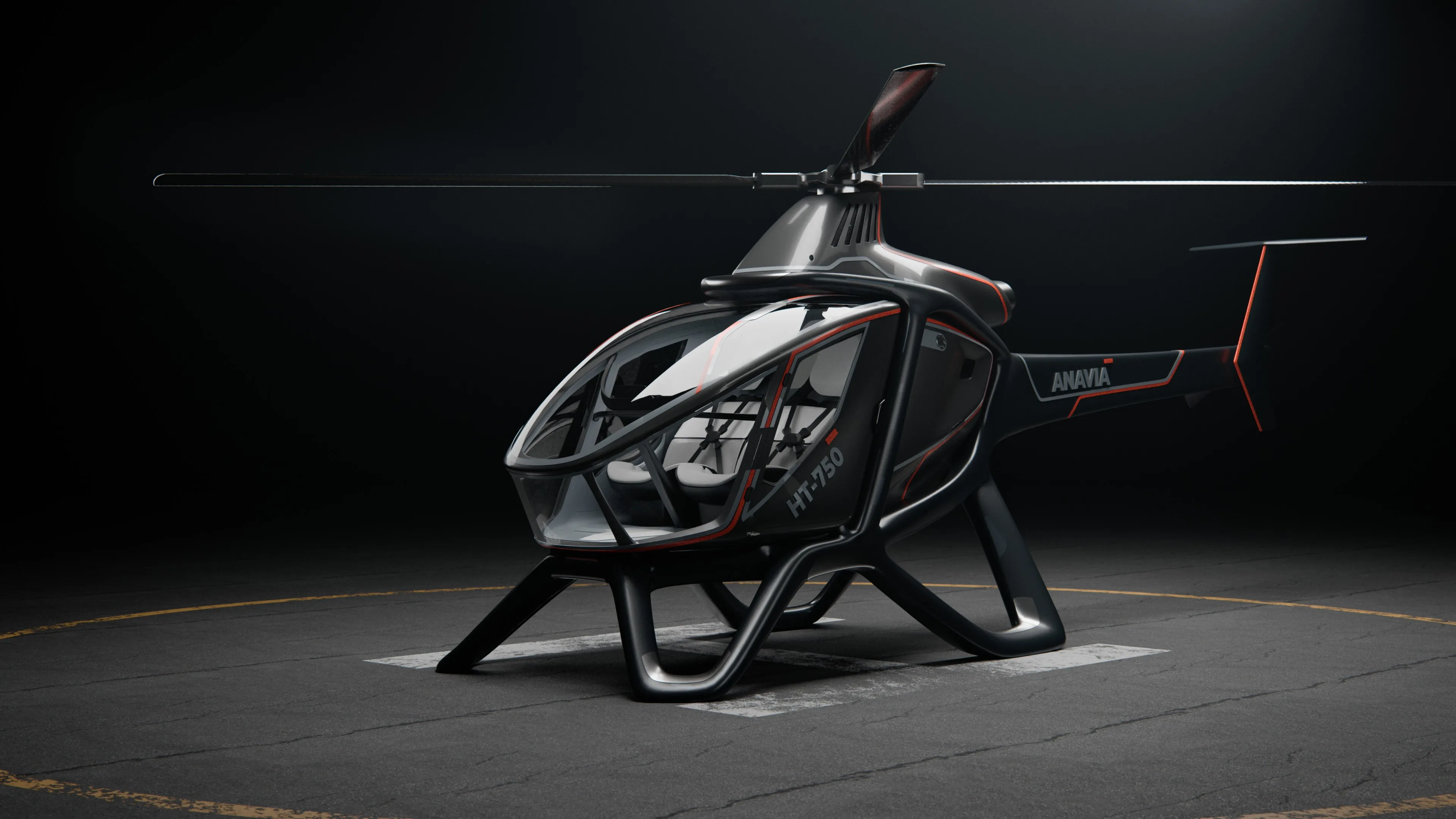

ANAVIA HT-750 engineering

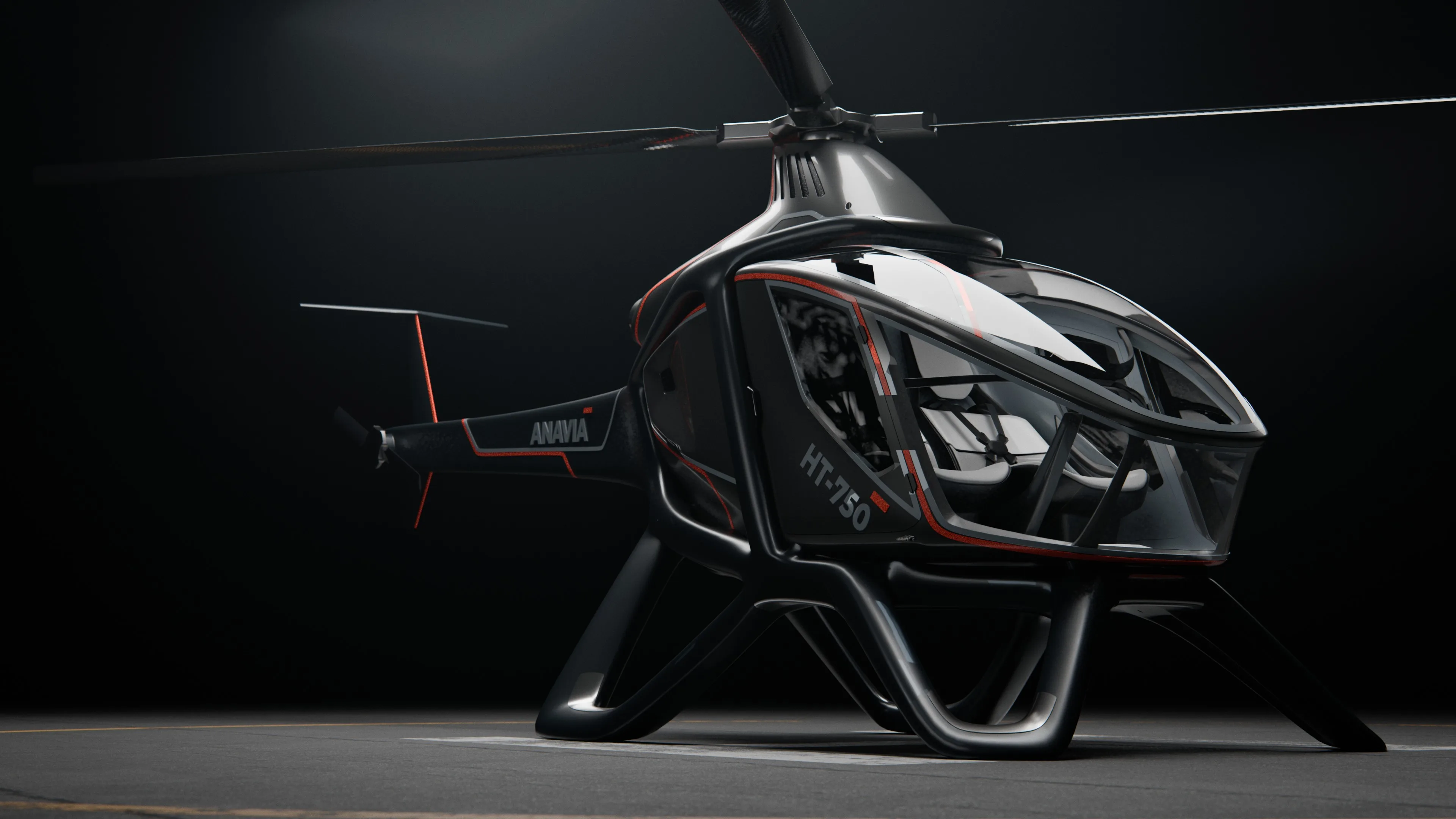

ANAVIA HT-750 technical profile
Specifications

Technical Data

Turbine Gas turbo-shaft engine
Rotor Semi-rigid 4-blade bearing-less rotor system
Typical empty weight 400 kg (882 lbs)
Tank Capacity 900 litres (238 gallons)
Fuel Types Jet A1 — other fuel types on demand (JP-8, JP-5)
Fuel Consumption 60 l/h
Data link type Fully encrypted MESH IP (limitless SATCOM, dual MIMO radios with up to 100 Mbps data rate and AES256 encryption)
Data link range Dependant on terrain topography and national regulations — radio and antenna configuration up to 200 km
Operating temperature -25°C to +55°C / -13°F to +131°F
Max wind speed Up to 56 km/h (30 kn)
Autonomy Takeoff, flight, and landing
Performance

Flight
Performance.

750 Payload and fuel
15 Max. flight time
222 Max. airspeed
1,150 Max. take-off weight
4,000 Operating ceiling

Endurance vs Payload

794 kg
1 hr
500 kg
4 hrs
360 kg
8 hrs
30 kg
15 hrs

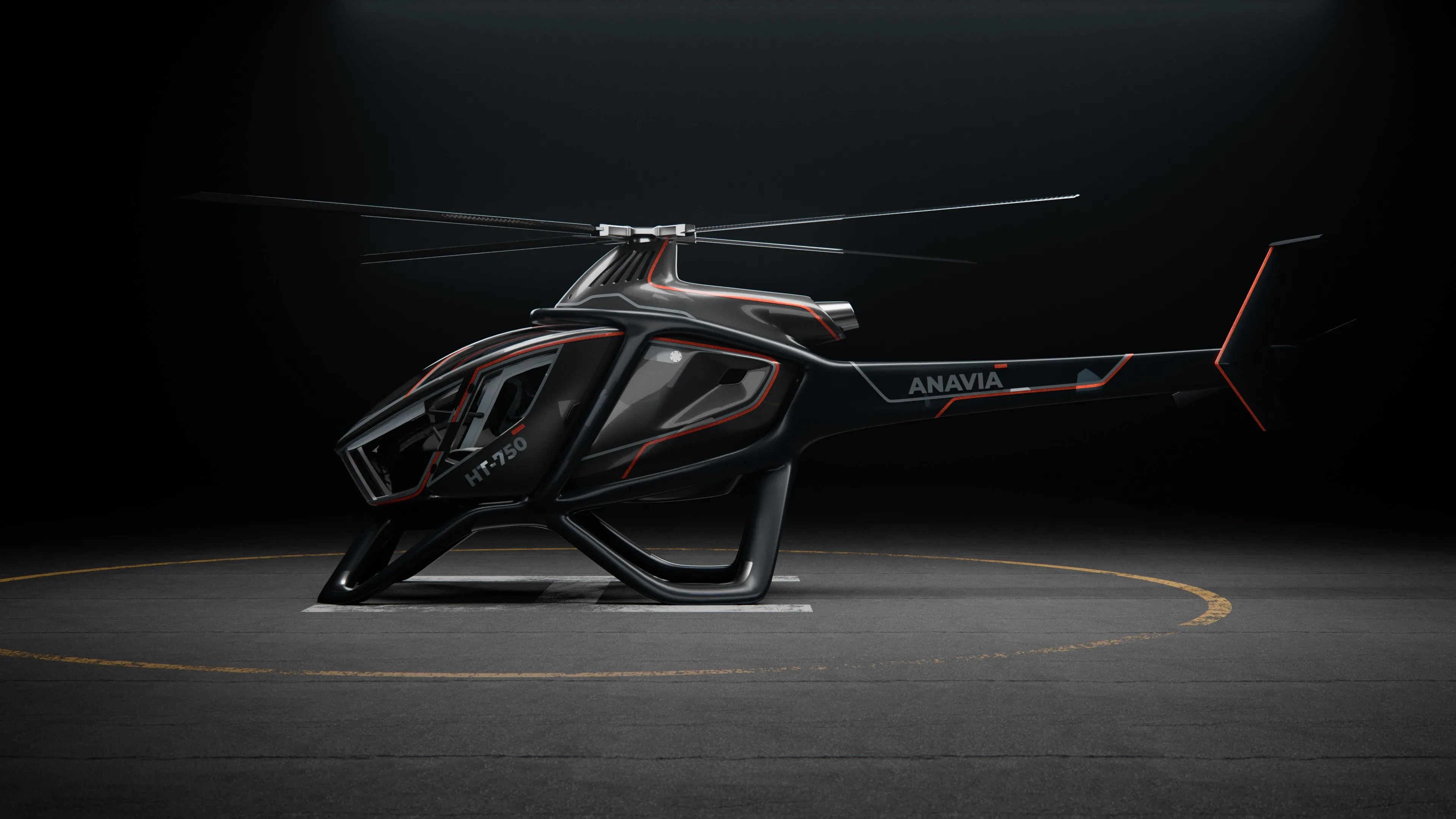

ANAVIA HT-750 in alpine operations
FAQ

Common Questions About the HT-750

What is the ANAVIA HT-750?

The ANAVIA HT-750 is a heavy-lift unmanned VTOL helicopter with a 1,150 kg maximum take-off weight and 750 kg payload capacity. Powered by a gas turbo-shaft engine with a semi-rigid 4-blade rotor system, it delivers 15 hours of endurance, 222 km/h maximum speed, and a 2,500 km flight mission distance.

What is the difference between the HT-100 and the HT-750?

The HT-100 is a tactical platform (120 kg MTOW, 60 kg payload, 6h endurance) optimized for ISR, search and rescue, and light logistics. The HT-750 is a heavy-lift platform (1,150 kg MTOW, 750 kg payload, 15h endurance) designed for heavy cargo, personnel transport, medical evacuation, and large-area persistent surveillance.

Can the HT-750 carry people?

The HT-750's 750 kg payload capacity supports insertion and extraction of up to 4 fully mission-ready personnel. This makes it capable of tactical personnel transport and medical evacuation (MEDEVAC) missions in environments too dangerous for manned aircraft.

What cargo can the HT-750 transport?

The HT-750 supports mission-critical supply delivery, modular logistics pods, Skyhook and 70-metre rope and net systems for remote drop, and medical evacuation equipment. With 750 kg payload capacity, it can transport heavy supplies to forward positions, disaster zones, or offshore platforms.

Get Started

Deploy the
HT-750.

Speak with our team about the HT-750 for your mission requirements.
